Tip 10 (P) – 11 (PK) – 20 (PP) – 21 (PKP) – 22 (PKKP) – 33 (PKKPKP)
Yükseklik(mm) 300 – 400 – 500 – 600 – 700 -900
Uzunluk (mm) 400 – 3000 (100 mm aralıkları ile)
Çalışma Basıncı 10 bar
Test Basıncı 13 bar
Standart EN 442 standartlarına uygun üretim

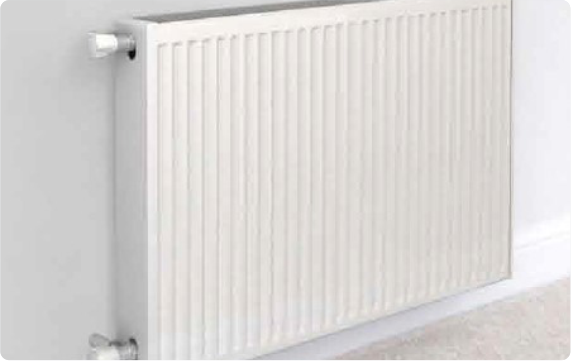

Radyator – Tip 22



Tip Yükseklik Manifold Uzaklığı Derinlik Radyatör Yüksekliği     Su Hacmi Ağırlık Uzunluk
H (mm) H1 (mm) (mm) H2 (mm) K (mm) K1 (mm) (l/m) (Kg/m) L (mm)
22 300 250 103 200 95 85 3 15.14 400-3000
22 400 350 103 300 112.5 150 4 20.03 400-3000
22 500 450 103 400 112.5 250 5 25.41 400-3000
22 600 550 103 500 112.5 350 6 31.02 400-3000
22 700 650 103 600 112.5 450 6.7 35.74 400-3000
22 900 850 103 800 112.5 650 9 44.76 400-3000

Fiyat $

TYPE 22 Yükseklik (mm)
Uzunluk (mm) 300 400 500 600 900
400 $33.00 $38.00 $42.00 $46.00 $68.00
500 $38.00 $44.00 $49.00 $54.00 $78.00
600 $43.00 $50.00 $56.00 $61.00 $89.00
700 $48.00 $56.00 $63.00 $69.00 $100.00
800 $53.00 $62.00 $69.00 $76.00 $111.00
900 $58.00 $68.00 $76.00 $84.00 $122.00
1000 $63.00 $74.00 $83.00 $90.00 $132.00
1100 $70.00 $81.00 $91.00 $100.00 $145.00
1200 $75.00 $87.00 $98.00 $107.00 $156.00
1300 $80.00 $93.00 $104.00 $115.00 $167.00
1400 $86.00 $100.00 $112.00 $123.00 $180.00
1500 $92.00 $107.00 $120.00 $132.00 $192.00
1600 $97.00 $113.00 $127.00 $140.00 $204.00
1800 $109.00 $126.00 $142.00 $156.00 $228.00
2000 $119.00 $138.00 $155.00 $171.00 $249.00
2200 $131.00 $152.00 $171.00 $188.00 $274.00
2400 $142.00 $165.00 $185.00 $204.00 $297.00
2600 $153.00 $178.00 $200.00 $220.00 $321.00
2800 $164.00 $191.00 $214.00 $236.00 $344.00
3000 $175.00 $203.00 $228.00 $250.00 $365.00
